Attr Content Product Name High Speed Cardboard Printing Machine Nozzle HP Industrial Thermal foaming nozzle Maximum print width 1030mm Print Speed 5-40 meters per minute Accuracy 1200x1200dpi Machine Size 2200mm x 2800mm x 2200mm (LWH) Machine Weight 3500KG Ink Type Specialized water-based ink Colours C、M、Y、K Paper Feeding Automatic Leading Edge Feeding System、Partition suction platform Servo System 5 x 3KW servo system motors Print media Corrugated Cardboard, Honeycomb Cardboard, Kraft Paper, etc. Paper Thickness 0.2-20mm File Format TIF,TIFF,PDF,AI,JPG,JPEG,etc. Environment Temperature: 0-40 °C Humidity: above 45% Power Supply AC 380V，50Hz/60Hz, 20kw Computer WIN7 / WIN10, 64-bit system, 500G or above hard disk, discrete graphics card. 8GB RAM or above, i5 or above cpu Print Interface Gigabit Ethernet port
Product Features

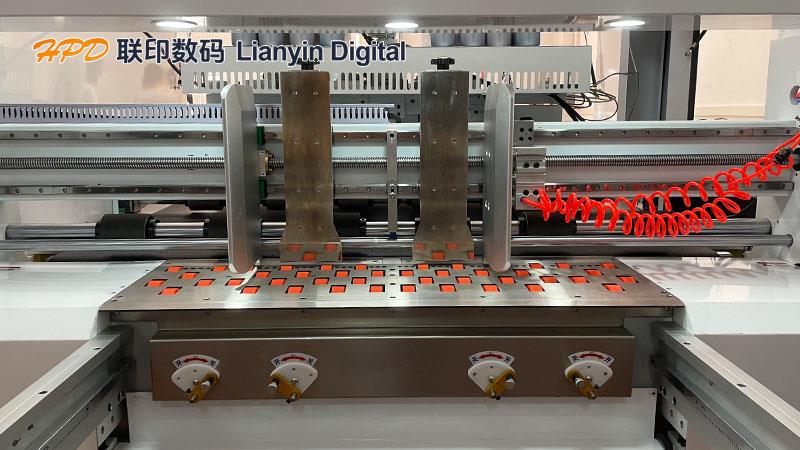

1. The partition slot can adjust the wind speed, with a maximum suction capacity of 30kw, and control different suction area.

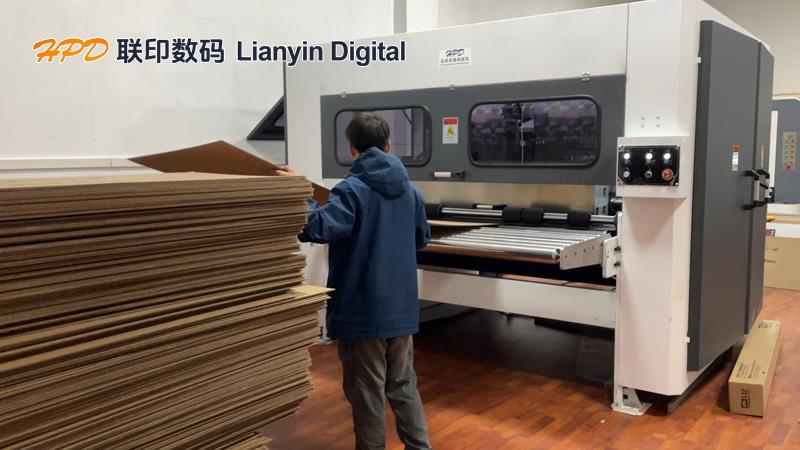

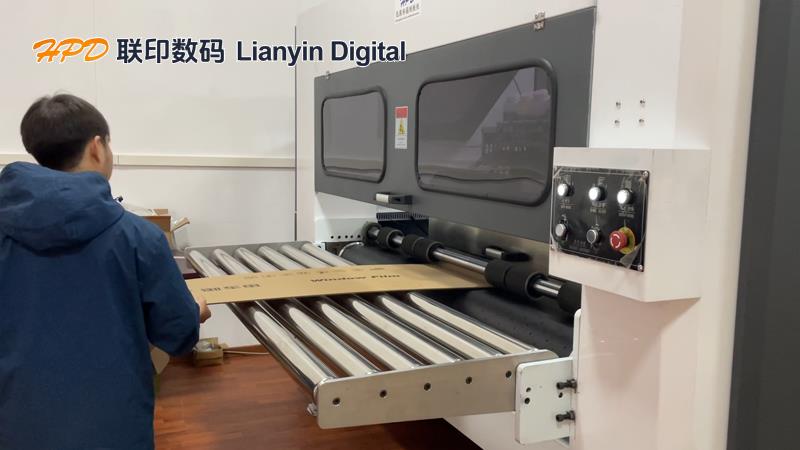

2. The entire machine is equipped with 5 3KW servo system motors to ensure worry free paper feeding throughout the process. Whether it is reverse corrugated cardboard or severely damp cardboard, it can be delivered smoothly to the printing area, making it the most advanced paper feeding system available today.
3. The tolerance between the printing unit and the belt surface is plus or minus 10 decimillimetre.
4. Output speed ranges from 5 meters per minute to 40 meters per minute. Due to the limitations of HP thermal foam heads, it is recommended to choose a production speed of 10-20 meters per minute to ensure the lifespan of the print head.
5. To extend the lifespan of the thermal foaming head and avoid full screen output.
Lianyin Digital provides environmentally friendly ink and packaging printer equipment for the overall solution, dedicated to meet the carton printing and packaging industry's demand for high quality and high efficiency. This cardboard printing machine using HP thermal foam printhead, without plate making, high efficiency onepass straight out of the printing. Applicable to small batch carton printing, a product of multiple versions of carton packaging printing, rapid production of bulk orders and other needs.
Our research and development of thermal foam printhead ink, can be used for corrugated cardboard, kraft carton digital direct print. It can achieve smooth printout within the temperature range of 0-40 degrees, with extra-high color concentration, excellent smoothness and good moisture retention. With extremely high color concentration, it can present vivid and full color effects, making the printed materials more attractive, while showing excellent smoothness and reducing blockage and line breakage. Lianyin high-speed carton digital printing equipment is your quality choice in carton printing and packaging industry. Welcome to inquire.

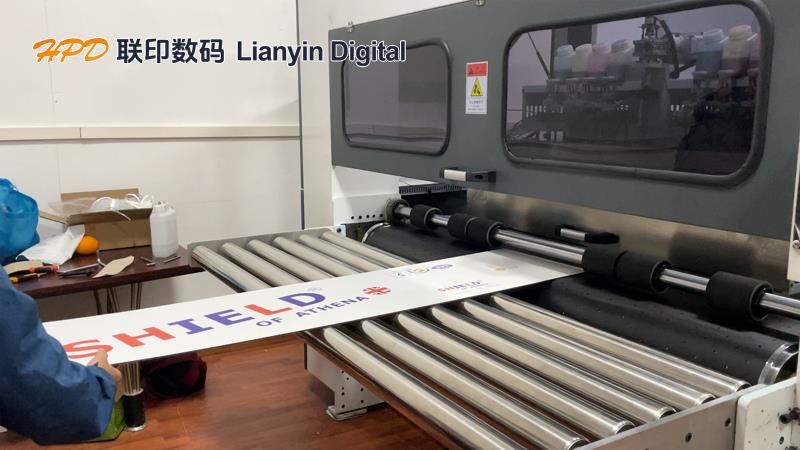

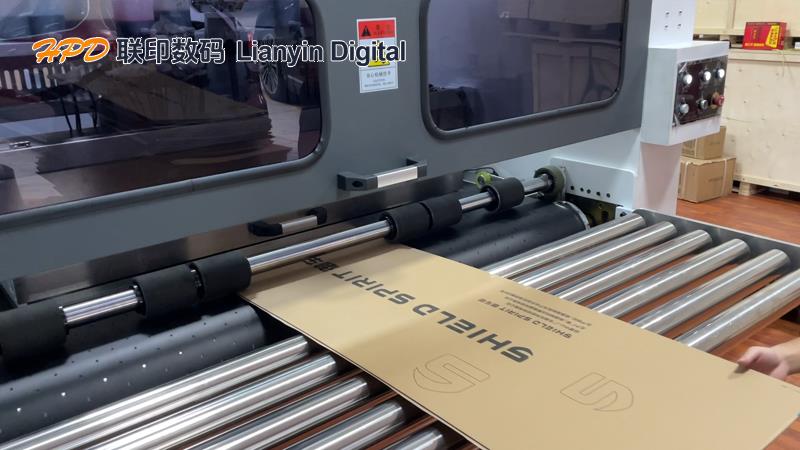

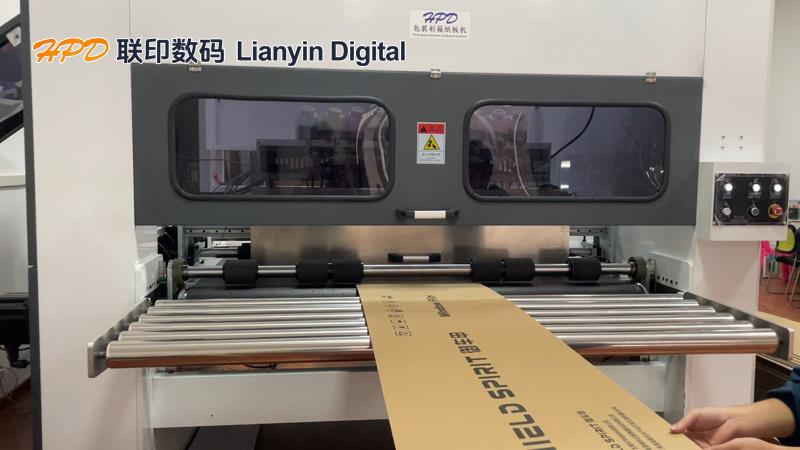

Printing

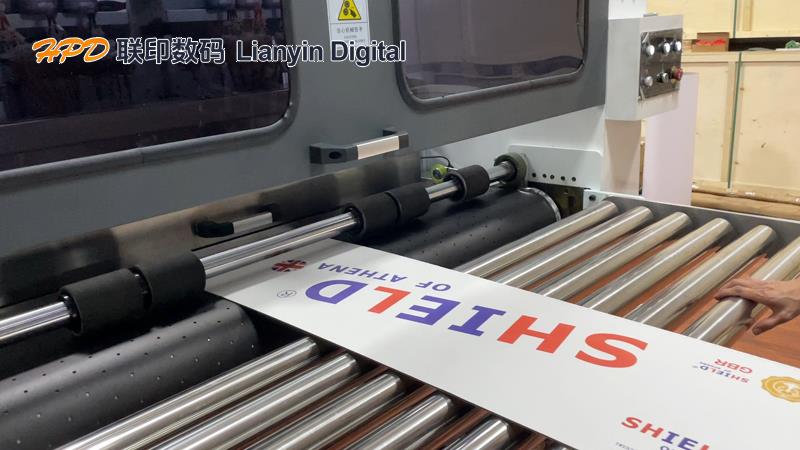

Printing Effect

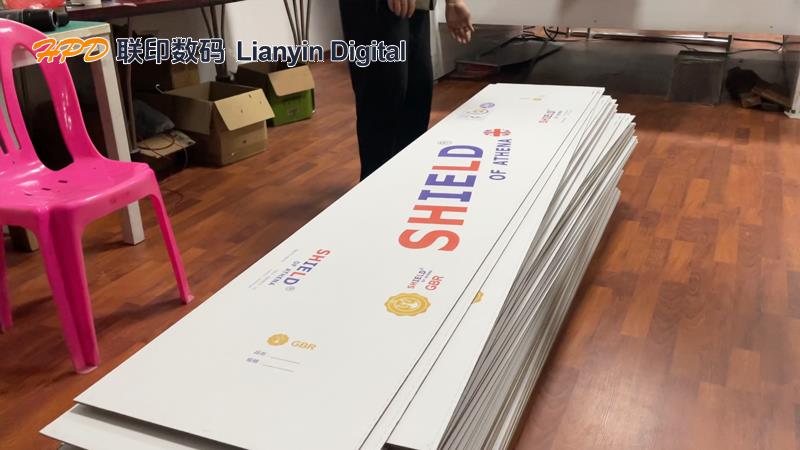

Cardboard packaging printing
